Multi - Fiber 12 Core Optical Fiber Components , 1 /1.5 Meter FC Ribbon Pigtail

Product Categories
Gezhi Photonics Co.,Ltd
Contact Now

Multi - Fiber 12 Core Optical Fiber Components , 1 /1.5 Meter FC Ribbon Pigtail

Brand Name : GEZHI or OEM

Model Number : GZ-Patch Cord

Certification : CE/FCC/RoHS/TUV/UL

Place of Origin : China

MOQ : 1

Price : Get Latest Price

Supply Ability : 100000pcs per week

Delivery Time : 1~3working days

Packaging Details : 1pcs in a Plastic bag

Product Name : Fiber Patch Cables

Mode : Multi Mode

Cores : simplex

Polishing : FC

Length : Customised

Application : FTTB

Contact Now

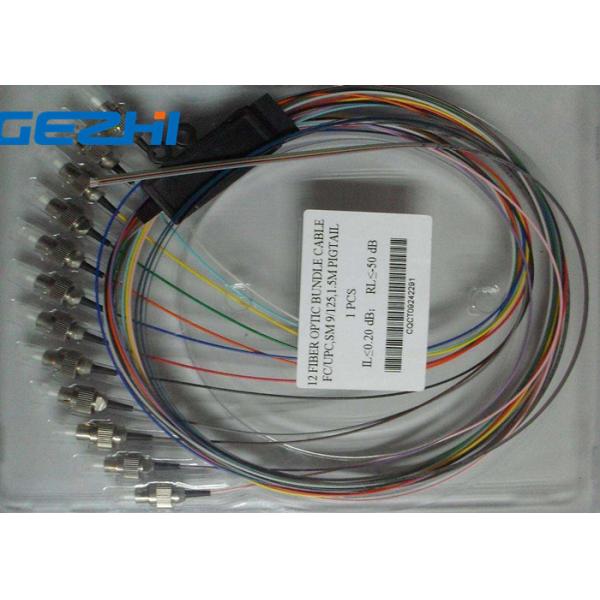

Multi - fiber 12 Core Fiber Optic Pigtail , 1Meter or 1.5 m FC Ribbon Pigtail

Separate multi-core cable (4 core, 6 core, 8 core, 12 core) fan-out( or bundle)

with connectors,suitable for convenient indoor connectivity and

distribution frames (ODF) intensive installation.

Features

  1. Ribbon fiber straightly separate into to single-core wiring pigtails.
  2. Mostly used in frame connection, simple, convenient and economical
  3. Easy to install, small size, large capacity.
  4. Jumper types: 2.0mm, 0.9mm.
  5. Indicators PC : Insertion Loss ≤ 0.2dB ; reflection attenuation ≥ 50dB;
  6. APC insertion loss ≤ 0.2dB ; Return Loss ≥ 60dB
  7. Fiber: 4 core 6 core 8 core, 10 core, 12 core.
  8. Fan out fiber have a special casing protection from twisting off or injury, and good bending properties.
  9. With FC / PC, FC / APC, SC / PC, SC / APC, ST / PC connectors

Competitive advantage:

1. 2core,4core,6core,8core,12core... available

  1. High quality, fast delivery
  2. Customer OEM LABEL or package box available
  3. Sample available

Specification (for single mode)

Parameter PC UPC APC
Insertion loss ≤0.30dB
Repeat-ability ≤0.10dB
Interchangeability ≤0.10dB
Return loss ≥50dB ≥55dB ≥60dB
Mating times ≥500
Operating temperature -40- +75°C
Fiber type G652.G655
Fiber length (M) 3.5.7.10 (in terms of customer demands)

More product show:

Multi - Fiber 12 Core Optical Fiber Components , 1 /1.5 Meter FC Ribbon Pigtail Multi - Fiber 12 Core Optical Fiber Components , 1 /1.5 Meter FC Ribbon Pigtail

Multi - Fiber 12 Core Optical Fiber Components , 1 /1.5 Meter FC Ribbon Pigtail Multi - Fiber 12 Core Optical Fiber Components , 1 /1.5 Meter FC Ribbon Pigtail

Multi - Fiber 12 Core Optical Fiber Components , 1 /1.5 Meter FC Ribbon Pigtail
