LGX Card Type 200Ghz Passive DWDM Mux Demux

Brand Name : GEZHI or OEM

Model Number : DWDM8CHMD21LPLGX

Certification : CE/RoHS/ISO9001

Place of Origin : China

MOQ : 1pcs

Price : Get Latest Price

Payment Terms : T/T, Paypal,Western Union

Supply Ability : 100000 Channel per month

Delivery Time : 5-8 work days

Packaging Details : paper box with foam

Product Name : Passive DWDM

Package : LGX card

Connector : LC or SC

Wavelength : C21~C36

Channel Spacing : 200Ghz

Channel : 8 Channel

Contact Now

LGX Card Type 200Ghz Passive DWDM Mux Demux

GEZHI LGX Card Type 200Ghz Passive DWDM Mux Demux Modules Based on thin film filter technology and with high wavelength stability, Low polarization dependent loss and high channel isolation, Flat and wide passband features. Its application in DWDM System,CATV system, Telecommunication network system and so on.

Features

Application
  • Wide pass band
  • Low insertion loss
  • ITU channel spacing
  • High channel isolation
  • Epoxy free on optical path
  • High stability and reliability
  • DWDM network
  • Channel add/drop
  • Wavelength routing
  • Fiber optical amplifier
  • CATV fiberoptic system

Ordering Informations

DWDM Type Spacing Channel Number 1 ITU Channel Pigtail Length Connector Package

M=Mux

D=Demux

MD=Mux+Demux

1=100Ghz

2=200Ghz

4=4CH

8=8CH

16=16CH

21=C21

22=C22

``````

60=C60

9=900um

2=2mm

3=3mm

1=1M

X=Specify

NE=None

FA=FC/APC

FC=FC/UPC SA=SC/APC SC=SC/UPC LC=LC/UPC LA=LC/APC XX=Other

A=ABS

L=LGX

1R=19" 1U Rack

2S=2Slot 1U Rack

4S=4Slot 1U Rack

Sepcifications

Parameters Value
Channel Space (GHz) 100 200
Channel Number 1*4 1*8 1*16 1*4 1*8 1*16
Center Wavelength (nm) ITU Grid
Center Wavelength Accuracy (nm) ± 0.05 ± 0.1
Channel Passband (@-0.5dB) (nm) 0.22 0.5
IL (dB) 1.8 2.5 3.5 1.7 2.9 3.8
Passband Ripple (dB) 0.35 0.4 0.5 0.35 0.4 0.5
Isolation (dB) Adjacent Channel 25 28
Non-Adjacent Channel 40
PDL (dB) 0.2
PMD (ps) 0.1
RL (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 300
Operating Temperature (°C) -20~75
Storage Temperature (°C) -40~85
BOX Package (mm) 100*80*10 or 140*115*18
LGX Package 1U,2U
19’’ Rack mount Package 1U

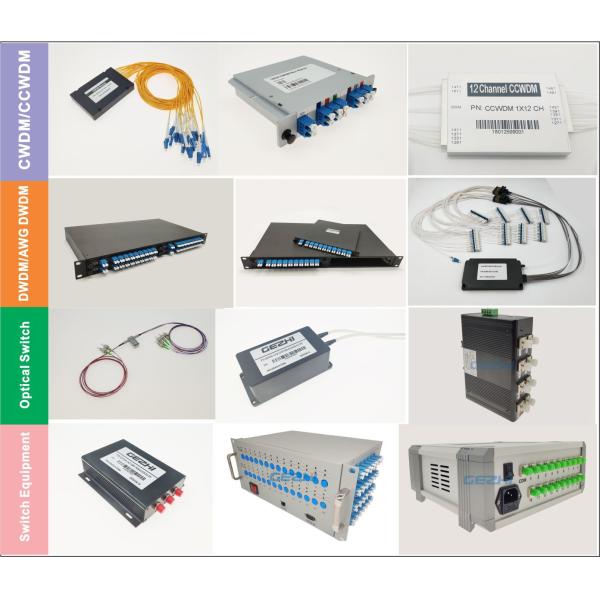

GEZHI Main Products CWDM/FWDM/CCWDM/DWDM/AWG, Optical Switches, Multi-Channel Fiber Optical Switches

LGX Card Type 200Ghz Passive DWDM Mux Demux
